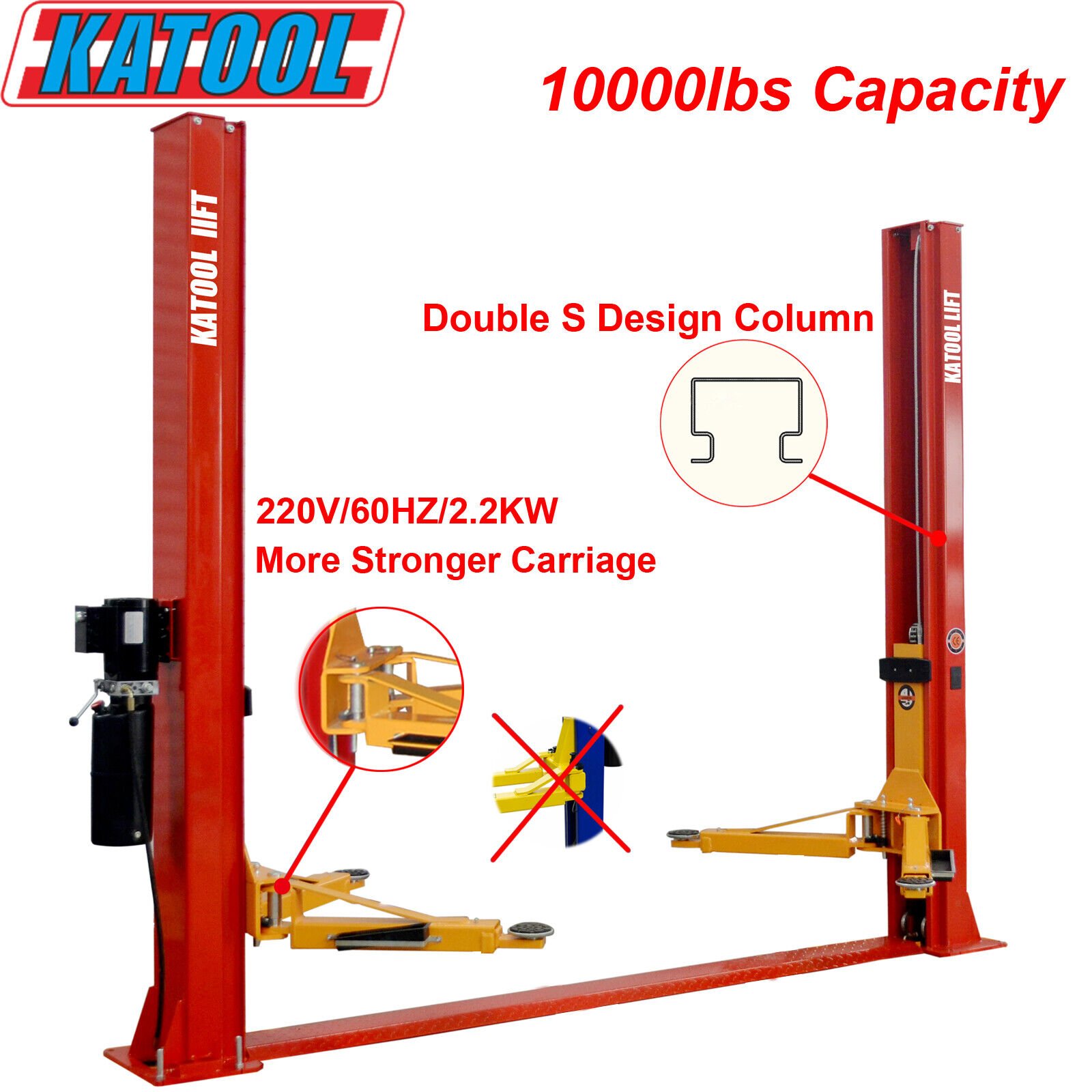

KT-H100 Two Post Vehicle Lift 10,000lbs

Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Lifting Capacity
10000lbs/4500KG

Max. Lifting Height
70.75″/1800mm

Min. Height
4.25″/110mm

Height Overall
110.25″/2800mm

Width Overall
142.25″/3614mm

Outside Column
128″/3250mm

Inside Column
110.25″/2800mm

Dirve-Thru Clearance
94.5″/2400mm

Front Arm Reach (Min)
30.75″/780mm (2 stages)

Front Arm Reach (Max)
50.5″/1280mm (2 stages)

Rear Arm Reach (Min)
30.75″/780mm (2 stages)

Rear Arm Reach (Max)
50.5″/1280mm (2 stages)

Motor
220VAC/60HZ/1PH/2.2KW

Net Weight
1256lbs/570KG
